Voyage details and related metadata, reports, events and data.
FR 06/97
(alternative identifier: FR199706)
- is a Marine National Facility
voyage
Period: 1997-07-17 00:00 to 1997-08-03 00:00 Local
Duration: 17.00 days
From: Townsville To: Madang
Region: Gulf of Papua/Bismarck Sea
Ship: Franklin [details]
Description: Cruise FR 06/97 (cruise 3 in a series of 4 for TROPICS97 -Tropical River-Ocean Processes in Coastal Settings) was undertaken to study the estaurine, inner and outer shelf zones of the Fly/Purari and Sepik Rivers outflow regions to determine the fate of riverine material entering the Gulf of Papua and the Bismarck Sea. Survey methods included ADCPs, CTDs, Megasucker deployments and underway instrumentation. Water samples were collected for both dissolved and particulate forms of nutrient elements, trace elements and organic matter for on board and laboratory analyses. Also conducted were productivity/grazing experiments and recovery of two sediment trap arrays. Related cruises are FR 04/97, FR 05/97 and FR 07/97.
Leader: R. Szymczak (ANSTO)
Project: National Facility External Users: R. Szymczak (ANSTO) [details]

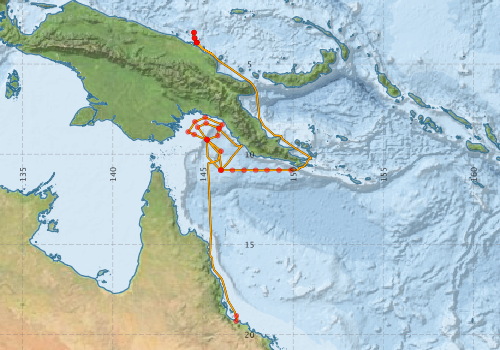

Voyage extents: 19° 15.1' S to 3° 12.8' S 144° 09.8' E to 150° 58.3' E Get voyage track shapefile Get CSV
Marlin Metadata:-
Metadata from OBIS Australia datasets:- biological data is published via the OBIS-AU IPT server and delivered to one or more of OBIS, ALA and GBIF
Download from OBIS Australia IPT View at - Ocean Biodiversity Information System (OBIS) Atlas of Living Australia (ALA) GBIF
Participants - on ship:-
| Name | Role | Organisation |
|---|---|---|
| Atushi Suzuki | Japan | |
| Dianne Miller | Australian Institute of Marine Science (AIMS) | |
| Graham Jones | James Cook University | |
| John Soles | Australian Institute of Marine Science (AIMS) | |
| Myint Zaw | Australian Nuclear Science and Technology Organisation (delete me) | |
| Penjai Sompongchaiyakul | University of New South Wales - Centre for Marine Science | |
| Phil Thornton | Australian Nuclear Science and Technology Organisation (delete me) | |
| Ronald Szymczak | Chief Investigator | Australian Nuclear Science and Technology Organisation (delete me) |
| Sue Codi | Australian Institute of Marine Science (AIMS) |
This list includes those that may have only been on part of the voyage. See voyage reports on 'Reports and Maps' tab for details.
Marine National Facility Reports - plans, summaries and data processing
-
FR199706 Voyage Summary
- includes preliminary results, voyage narrative, types of data collected with C77/ROSCOP codes.
-
FR199706 Voyage Plan
- includes objectives, investigator details, proposed data collection, voyage track and equipment to be used.
-
Publications, reports and datasets from this voyage.
IPT Resource
- Seabird observations in Australian and adjacent seas from voyages of the RV Franklin, RV Southern Surveyor, Southern Supporter and RV Aurora Australis (1988-2012) (Darwin Core Archive) External link to reference
Journal Article
- Cheshire, N. (2010) Procellariiformes observed around Papua New Guinea including the Bismarck Archipelago from 1985 to 2007. South Australian Ornithologist Vol 36, parts 1 &2 (p. 9-24)
- Jones, Graham B.,Trevena, Anne J. (2005) The influence of coral reefs on atmospheric dimethylsulphide over the Great Barrier Reef, Coral Sea, Gulf of Papua and Solomon and Bismarck Seas. Marine and Freshwater Research 56 pp85-. 10.1071/mf04097
Search for publications, reports and datasets from this and other voyages
Data publishing
This is a list of online datasets hosted by CSIRO. Other processed datasets hosted by collaborating organisations may be found on the 'Metadata' or "Reports, Publications and Maps' tab.
Use the Get data link on the right to extract data using the NCMI Data Trawler.
| Data Stream | Data Summary | Get data | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ADCP Data |
|
Get Data from Trawler Download ASCII dataset - fr9706adcp.zip Download NetCDF dataset fr9706adcp.zip Processing report for this dataset |
||||||||||||||
| Marine biodiversity observations and/or samples |
|
Get Data from Trawler |
||||||||||||||
| CTD profile |
|
Get Data from Trawler |
||||||||||||||
| Hydrology |
|
Get Data from Trawler |
||||||||||||||
| Underway |
|
Get Data from Trawler |
Deployments by start time:- Click on column header to sort. Use link on 'Deployment' to see full details. Use the CSV button at the bottom to export data (tab delimited).
Search for deployments from this voyage and others
| Deployment | Operation | Station | Cast | Gear | Project | Start and end times | Start Location | End Location | Depth range | Max Depth | Description | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Underway System [details] | Anemometer,Anemometer,Anemometer,Barometer,Gyro-MK 10,Humidity probe,Licor-UWQ 4653,RIMCO vane driving potentiometer,RIMCO vane driving potentiometer,Ships log,Simrad EA500 Echosounder,Temperature sensor-AD590J,ThermoSalinoGraph (TSG),ThermoSalinoGraph (TSG) | 138 | 1997-07-17 01:00 | 1997-08-02 23:55 | -19.2525 | 146.8330 | -4.4917 | 145.5510 | ||||||
| ADCP Data [details] | RDI VM-150 Acoustic Doppler current profiler | 138 | 1997-07-17 03:20 | 1997-08-02 12:20 | -18.9540 | 146.8450 | -4.4800 | 145.5400 | 384.8 | |||||
| CTD Cast / Hydrology [details] | 1 | Cast 1 | 138 | 1997-07-19 07:58 | 1997-07-19 09:20 | -9.8353 | 146.0005 | -9.8342 | 146.0083 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 2 | 138 | 1997-07-20 01:04 | 1997-07-20 02:09 | -8.9675 | 145.8160 | -8.9602 | 145.8063 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 3 | 138 | 1997-07-22 22:40 | 1997-07-22 23:30 | -9.2047 | 145.2268 | -9.1993 | 145.2273 | 0 | ||||
| CTD Cast [details] | 1 | Cast 4 | 138 | 1997-07-23 01:14 | 1997-07-23 01:24 | -9.2100 | 145.2292 | -9.2092 | 145.2277 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 5 | 138 | 1997-07-23 05:57 | 1997-07-23 06:11 | -8.9082 | 144.5040 | -8.9063 | 144.5045 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 6 | 138 | 1997-07-23 08:30 | 1997-07-23 08:42 | -8.7642 | 144.1672 | -8.7612 | 144.1673 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 7 | 138 | 1997-07-23 14:27 | 1997-07-23 14:40 | -8.2032 | 144.5468 | -8.2020 | 144.5460 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 8 | 138 | 1997-07-23 18:26 | 1997-07-23 18:42 | -7.9642 | 145.1142 | -7.9630 | 145.1160 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 9 | 138 | 1997-07-24 02:59 | 1997-07-24 03:11 | -8.3575 | 146.0632 | -8.3553 | 146.0635 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 10 | 138 | 1997-07-24 05:14 | 1997-07-24 05:57 | -8.5877 | 145.8832 | -8.5765 | 145.8897 | 0 | ||||
| CTD Cast [details] | 1 | Cast 11 | 138 | 1997-07-24 09:44 | 1997-07-24 09:51 | -8.5627 | 145.8835 | -8.5630 | 145.8840 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 12 | 138 | 1997-07-24 17:16 | 1997-07-24 17:34 | -8.2830 | 145.1680 | -8.2810 | 145.1645 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 13 | 138 | 1997-07-24 21:15 | 1997-07-24 21:29 | -8.4970 | 144.6940 | -8.4955 | 144.6918 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 14 | 138 | 1997-07-25 06:32 | 1997-07-25 07:19 | -9.1945 | 145.2127 | -9.1890 | 145.2098 | 0 | ||||
| CTD Cast [details] | 1 | Cast 15 | 138 | 1997-07-25 09:37 | 1997-07-25 09:51 | -9.1682 | 145.1945 | -9.1673 | 145.1947 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 16 | 138 | 1997-07-26 00:42 | 1997-07-26 01:46 | -10.8843 | 146.0033 | -10.8885 | 146.0082 | 0 | ||||
| CTD Cast [details] | 1 | Cast 17 | 138 | 1997-07-26 04:17 | 1997-07-26 04:31 | -10.8855 | 145.9862 | -10.8860 | 145.9870 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 18 | 138 | 1997-07-26 09:53 | 1997-07-26 10:03 | -10.8797 | 145.9777 | -10.8800 | 145.9778 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 19 | 138 | 1997-07-26 13:59 | 1997-07-26 14:10 | -10.8865 | 146.6247 | -10.8858 | 146.6208 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 20 | 138 | 1997-07-26 18:00 | 1997-07-26 18:09 | -10.8870 | 147.2723 | -10.8860 | 147.2705 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 21 | 138 | 1997-07-26 22:00 | 1997-07-26 22:10 | -10.8845 | 147.9127 | -10.8840 | 147.9098 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 22 | 138 | 1997-07-27 02:00 | 1997-07-27 02:09 | -10.8798 | 148.5423 | -10.8778 | 148.5405 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 23 | 138 | 1997-07-27 06:00 | 1997-07-27 06:09 | -10.8825 | 149.2115 | -10.8815 | 149.2098 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 24 | 138 | 1997-07-27 09:59 | 1997-07-27 10:09 | -10.8820 | 149.8725 | -10.8802 | 149.8703 | 0 | ||||
| CTD Cast [details] | 1 | Cast | 138 | 1997-07-29 21:00 | 1997-07-29 00:00 | -3.8075 | 144.6467 | 0 | ||||||
| CTD Cast [details] | 1 | Cast | 138 | 1997-07-29 21:00 | 1997-07-29 00:00 | -3.8053 | 144.6425 | 0 | ||||||
| CTD Cast [details] | 1 | Cast 26 | 138 | 1997-07-30 03:21 | 1997-07-30 03:54 | -3.8077 | 144.6470 | -3.8040 | 144.6352 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 27 | 138 | 1997-07-30 05:44 | 1997-07-30 06:20 | -3.8048 | 144.6428 | -3.7978 | 144.6362 | 0 | ||||
| CTD Cast [details] | 1 | Cast 28 | 138 | 1997-07-30 09:48 | 1997-07-30 10:01 | -3.8052 | 144.6422 | -3.8027 | 144.6385 | 0 | ||||
| CTD Cast [details] | 1 | Cast | 138 | 1997-07-30 21:00 | 1997-07-30 00:00 | -3.5663 | 144.5330 | 0 | ||||||
| CTD Cast / Hydrology [details] | 1 | Cast 30 | 138 | 1997-07-31 01:37 | 1997-07-31 02:28 | -3.5650 | 144.5332 | -3.5598 | 144.5200 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 32 | 138 | 1997-07-31 09:14 | 1997-07-31 10:05 | -3.5570 | 144.5157 | -3.5445 | 144.5028 | 0 | ||||
| CTD Cast / Hydrology [details] | 1 | Cast 33 | 138 | 1997-07-31 11:53 | 1997-07-31 13:24 | -3.2490 | 144.4985 | -3.2283 | 144.4780 | 0 | ||||
| CTD Cast [details] | 1 | Cast | 138 | 1997-07-31 23:00 | 1997-07-31 00:00 | -3.2495 | 144.4982 | 0 | ||||||
| CTD Cast [details] | 1 | Cast | 138 | 1997-08-01 21:00 | 1997-08-01 00:00 | -3.2495 | 144.4982 | 0 | ||||||
| CTD Cast / Hydrology [details] | 1 | Cast 36 | 138 | 1997-08-02 01:39 | 1997-08-02 02:00 | -3.8117 | 144.6412 | -3.8067 | 144.6410 | 0 | ||||
